HappyModel EX1102 10000kv – Set Of 4

Great motor for light weight builds. You can use this for a toothpicks (2″/65mm/75mm/85mm).

Please note the wire color simply reflects the default direction of rotation.  It can be changed easily with BLHeli so wire color is somewhat irrelevant.

Features:

• The lightest 1102 brushless motor
• Dual bearing design
• 40mm – 66mm propellers compatible
• 2S-3S Batteries for 75mm-85mm whoops and best for 66mm ductless frame

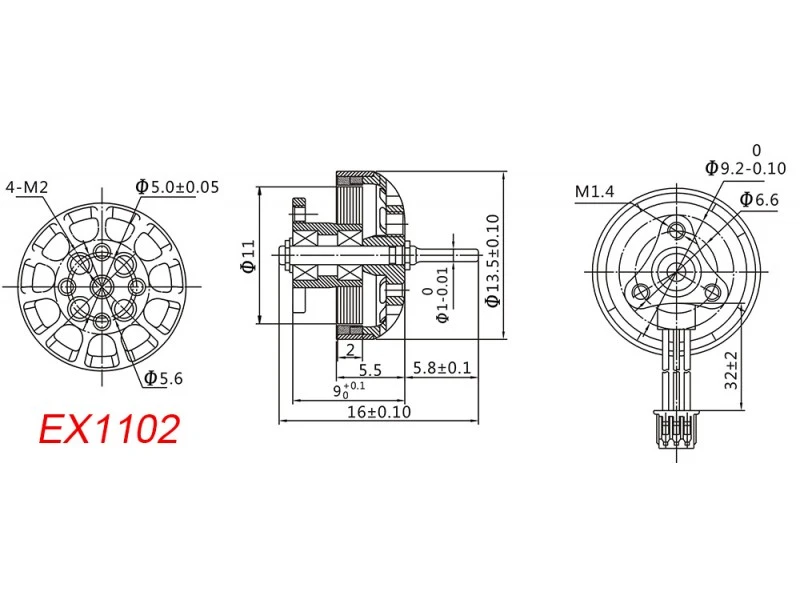

Specifications:

• Model: EX1102
• KV: 10000KV
• Configuration:9N12P
• Stator Diameter: 11mm
• Stator Length: 2mm
• Shaft Diameter: Φ1.5mm
• Motor Dimension (Dia.*Len): Φ13.5mmx16mm
• Weight(g): 2.8g
• No.of Cells(Lipo): 2S-3S

Package:

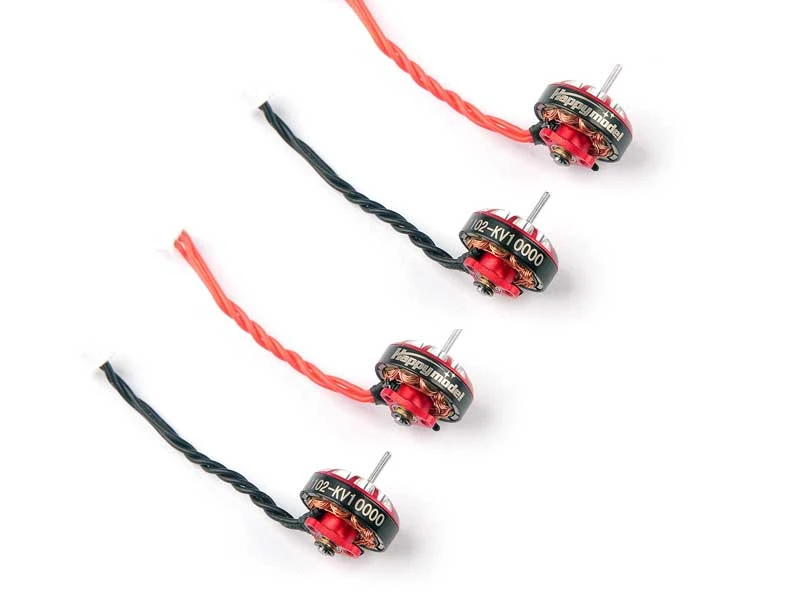

• 4x EX1102 10000kv
