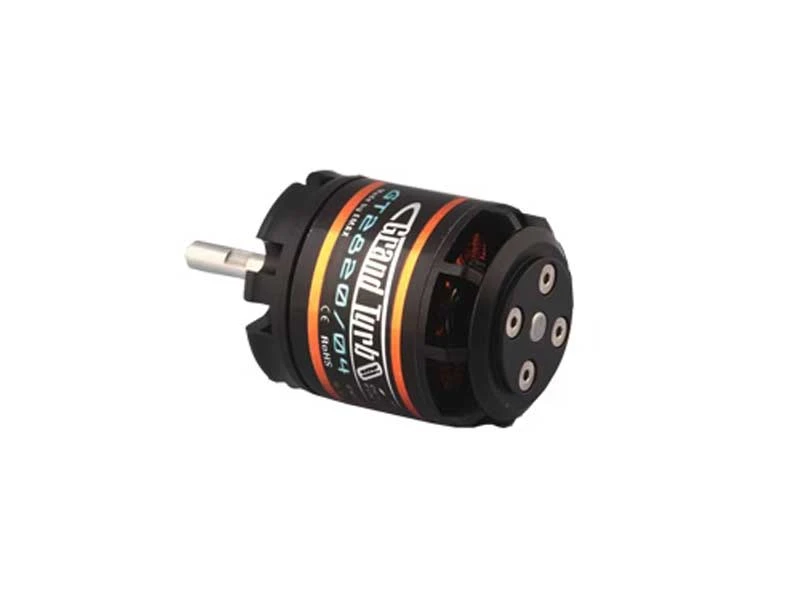

Emax GT2820 850kv Motor

2820/07 Brushless motor for your wings/planes.

Specifications:

• Stator dimensions: 28x20mm
• Shaft diameter: 5mm
• KV: 850kv
• Weight: 140g
• Motor mounting: 25x25mm (comes with 52x52mm mounting plate)
• Recommended model weight: 800-2300g
• Best suited for 2S-4S planes
• Recommended props without gearbox: 9×4.7 / 12×6

Cell Count	Prop (GWS)	RPM	Max current (<60sec)	Thrust
4S	12×6	8700	41A	2300g
3S	12×6	7600	26A	1650g

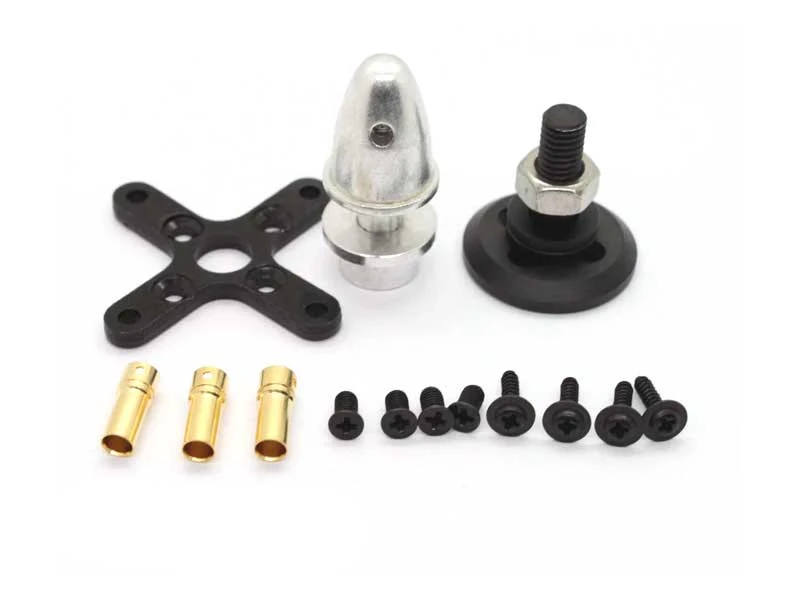

Assembly:

1. Bottom with motor cover assembled
2. Bottom with propeller adapter assembled
