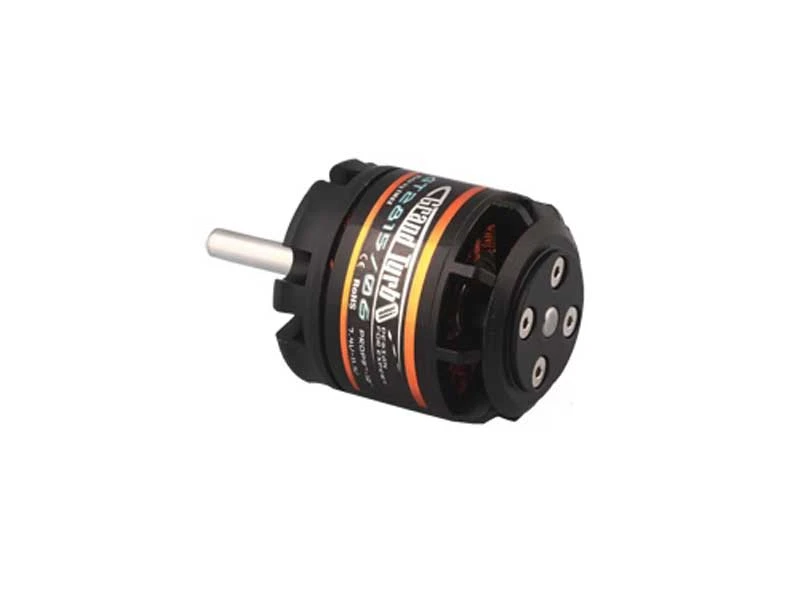

2815/07 Brushless motor for your wings/planes.
Specifications:
- Stator dimensions: 28x15mm
- Shaft diameter: 5mm
- KV: 1100kv
- Weight: 120g
- Motor mounting: 25x25mm (comes with 52x52mm mounting plate)
- Recommended model weight: 800-1800g
- Best suited for 2S-3S planes
- Recommended props without gearbox: 10×5 / 13×6.5
| Cell Count | Prop (GWS) | RPM | Max current (<60sec) | Thrust |
|---|---|---|---|---|
| 3S | 11×5.5 | 9400 | 36A | 1800g |
| 2S | 13×6.5 | 5960 | 30A | 1330g |

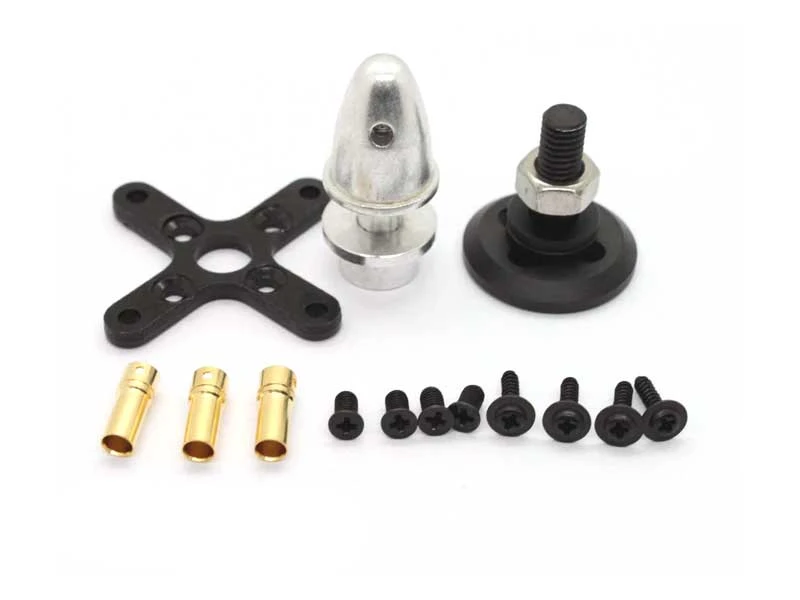

Assembly:
- Bottom with motor cover assembled
- Bottom with propeller adapter assembled
