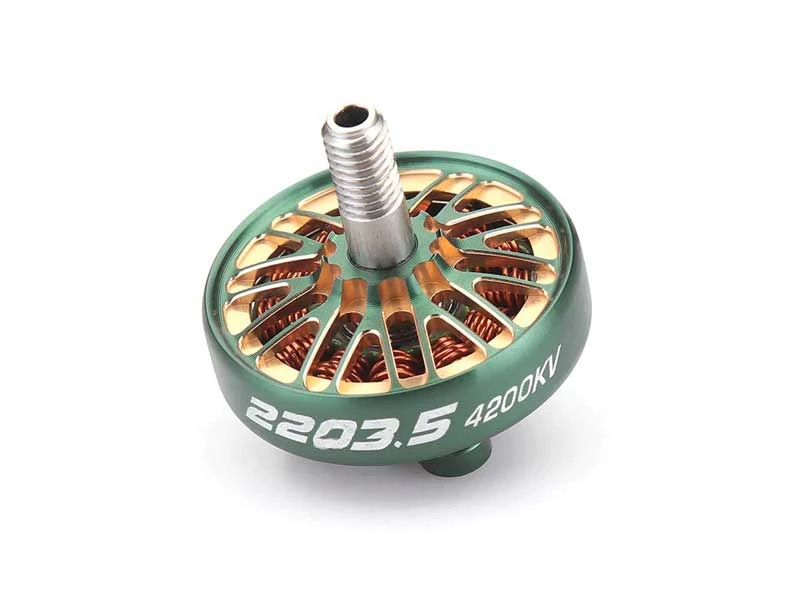

Diatone TOKA 2203.5 4200KV

Replacement motor for the 4S Roma F35

Specifications:

• Overall Dimension: Φ28.9×29.4mm
• prop mounting shaft diameter: 5mm
• Installation hole position: 16×16mm，M3
• Prop: 3.5inch
• Bearing: 9*4*4
• Shaft Diameter: 4.0mm
• Lead Wire Size: 24AWG×190mm
• slots/poles:12N14P
• Magnet Wire: 240℃ Enameled Wire
• Stator Diamter：22mm
• Stator Height: 3.5mm
• Rated Voltage: 3~4S (12.6V~16.8V)
• Peak Current: 35.21A
• ldle Current：2.2A
• Maximum Power: 567.23W
• Internal Resistance：65mΩ”

Package:

• 1x motor
